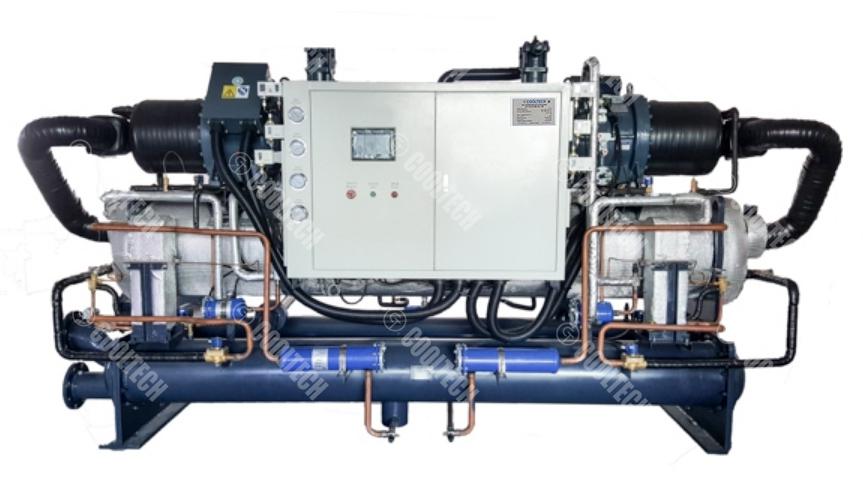

Chillers for industrial air conditioning
COOLTECH chillers with reciprocating or screw compressors.
COOLTECH manufactures COOLTECH CTCH chillers for industrial air conditioning. The design and components of COOLTECH chillers comply with European standards 2006 / 42CE, 2006 / 95CE, 2004 / 108CE, 97 / 23CE.
- Description
- Specifications
Main components:
- Frame covered with anti-corrosion paint.
- Highly reliablereciprocating or semi-hermetic screw compressors.
- Refrigerant: R134a, R410A (on request).
- Shell and tube evaporator and condenser.
- Microprocessor control and monitoring system.
- Start panel with soft starter in a separate cabinet.
- The standard design conditions are: chilled water:outlet water temperature +7 °C, return water temperature +12 °C; condensing temperature +40 ° C.
- Due to continuous updating of product technology, the above data is subject to change without prior notice.
- In addition to the listed product models, our company can customize non-standard units according to customer requirements.
Specification:
Тип COOLTECH CTCH |
90 |
100 |
140 |
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
650 |
750 |
830 |
940 |
|
Cooling capacity, KW |
98 |
109 |
136 |
159 |
195 |
249 |
297 |
349 |
388 |
459 |
506 |
588 |
658 |
745 |
849 |
934 |
|
Power |
3N / 380 V / 50 HZ |
||||||||||||||||
Cooling input power, KW |
18 |
23 |
30 |
36 |
44 |
51 |
65 |
77 |
85 |
100 |
110 |
127 |
140 |
157 |
198 |
213 |
|
Compressor |
semi-closed double screw compressor |
||||||||||||||||
Heat control range |
0~25~37.5~50~62.5~75~87.5~100 (12.5% segmentation control) |
||||||||||||||||
Condenser |
Type |
Horizontal shell-and-tube, water-cooled |
|||||||||||||||
Consumption, m3/hour |
15.5 |
18 |
23 |
27 |
33 |
42 |
51 |
60 |
67 |
79 |
87 |
101 |
113 |
128 |
146 |
160 |
|
Water pressure drop, KPa |
49 |
60 |
73 |
||||||||||||||
Connection size |
DN65 |
DN80 |
DN100 |
DN125 |
DN150 |
||||||||||||
Evaporator |
Type |
Shell and tube horizontal |
|||||||||||||||
Consumption, m3/hour |
20 |
25 |
28 |
33 |
41 |
53 |
62 |
72 |
80 |
107 |
118 |
136 |
150 |
171 |
198 |
213 |
|
Water pressure drop, KPa |
45 |
||||||||||||||||
Connection size |
DN65 |
DN80 |
DN100 |
DN125 |
DN150 |
||||||||||||
Security device |
High and low voltage protection, anti-icing, heat release protection (double), safety valve, overload protection, under-phase, reverse phase, under voltage, over voltage, water flow protection, etc. |
||||||||||||||||
Refrigerant, R134a |
Charge, Kg |
20 |
23 |
30 |
35 |
44 |
48 |
55 |
58 |
61 |
75 |
85 |
90 |
115 |
133 |
155 |
165 |
Dimension |
Length, mm |
2500 |
2500 |
2585 |
2635 |
2635 |
3100 |
3130 |
3130 |
3135 |
3135 |
3135 |
3135 |
3275 |
3300 |
3300 |
3668 |
Width, mm |
850 |
850 |
900 |
900 |
900 |
1100 |
1100 |
1100 |
1100 |
1100 |
1100 |
1100 |
1100 |
1100 |
1100 |
1100 |
|
Height, mm |
1300 |
1300 |
1335 |
1335 |
1428 |
1428 |
1570 |
1680 |
1776 |
1800 |
1800 |
2000 |
2020 |
2070 |
2100 |
2120 |
|
Unit weight, kg |
850 |
850 |
850 |
1050 |
1270 |
1430 |
1740 |
1850 |
2480 |
2600 |
2870 |
3200 |
3400 |
3600 |
3850 |
4345 |
|
Working weight, kg |
900 |
900 |
900 |
1100 |
1420 |
1580 |
1890 |
2050 |
2580 |
2800 |
3120 |
3500 |
3700 |
3900 |
4150 |
4640 |
