R717
Operating limits single stage compressors CMO, SMC100S-L, SMC180
Type | Area | rpm max. |
rpm min. |
Cooling Booster Single and HP-stage compr. |
|
СМО 20 | 1-2 | 1800 | 900 | Air-cooled top- and side covers # - or water-cooled | |
3-4 | 1800 | Water-cooled | Thermopump or water-cooled | ||
SMC100S-L | 1-2 | 1500 | 700 |
Air-cooled top- and side covers # - or water-cooled | |
3 | 1500 | Water-cooled | Thermopump or water-cooled | ||
4 | 1200 | ||||
SMC180 | 1 | 750 | 450 |
Water-cooled |
|
2-3 | 1000 | ||||
4 | 900 |
Including refrigerant-cooled oil cooler
Thermopump:
Top- and side covers are cooled by refrigerant injection. Oil cooling included in the system
Water-cooled:
Top- and side covers. Oil cooling included in the system.
NB: At part load the discharge gas temp. must not exceed 150°C/302°F

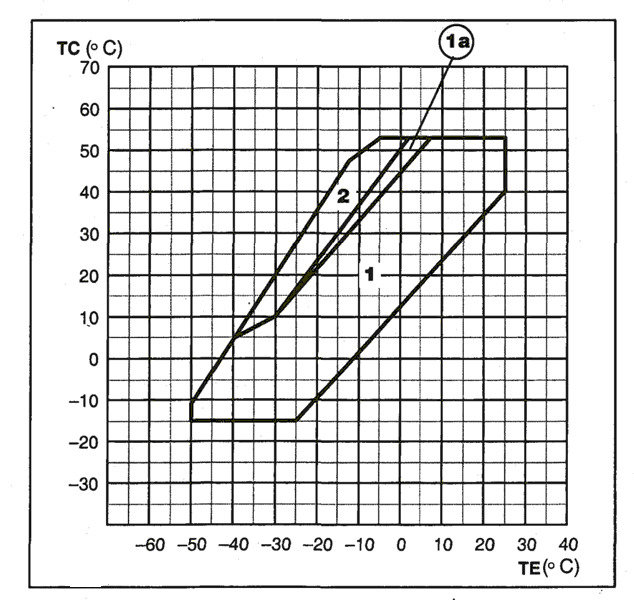

Operating limits single stage compressors SMC100E
Type | Area | rpm max. |
rpm min. |
Cooling Booster Single and HP-stage compr. |
|
SMC100E | 1- (1а) | 1500 | 700 | Water-cooled | Thermopump or water-cooled |
2 | 1200 |
hermopump:
Only the HP Stage top covers are cooled by a thermo pump. Oil cooling included in the system
Water-cooled:
Top- and side covers. Oil cooling included in the system.
NB: At part load the discharge gas temp. must not exceed 150°C/302°F
1а: In this area the compressor is not allowed to run at a capacity below 50%.
1а: In this area the compressor is not allowed to run at a capacity below 50%.
Operating limits two-stage compressors TCMO, TSMC100S-L-E, TSMC 180
Type | Area | rpm. max |
rpm min |
Cooling top and side |
Note |
TCMO | 1-2 | 1800 | 900 | Thermopump or water-cooled | |
TSMC100 S-L-E |
1-2 | 1500 | 700 | Thermopump or water-cooled | * |
TSMC 180 | 1 2 |
750 1000 |
450 | Water-cooled | * |
Oil cooling is always necessary.
Thermopump:
Only the HP Stage top covers are cooled by a thermo pump. Oil cooling included in the system.
Water-cooled:
Top- and side covers. Oil cooling included in the system.
Part-load operation:
* Depending on the operating conditions and the presure on the compressor a bypass system may be required
