R404A
Operating limits single stage compressors CMO, SMC100S-L
| Type | Area | rpm max |
rpm min |
Oil-cooling required * |
Note |
| CMO20 | 1 | 1200 | 900 | no | |
| 1500 | At less than 50% capacity | ||||
| 2 | 1500 | no | |||
| 1800 | At less than 50% capacity | ||||
| SMC100S | 1 | 1000 | 700 | no | |
| 2 | 1200 | no | |||
| 1500 | At less than 50% capacity | ||||
| SMC100L | 1 2 | 1000 | 700 | no | |
| 1200 | no |
Top covers: Air-cooled design only.
* When oil cooling is required there is a free choice between A and B.
А: Water-cooled side covers.
B: Built-in refrigerant-cooled oil cooler with thermostatic expansion valve.

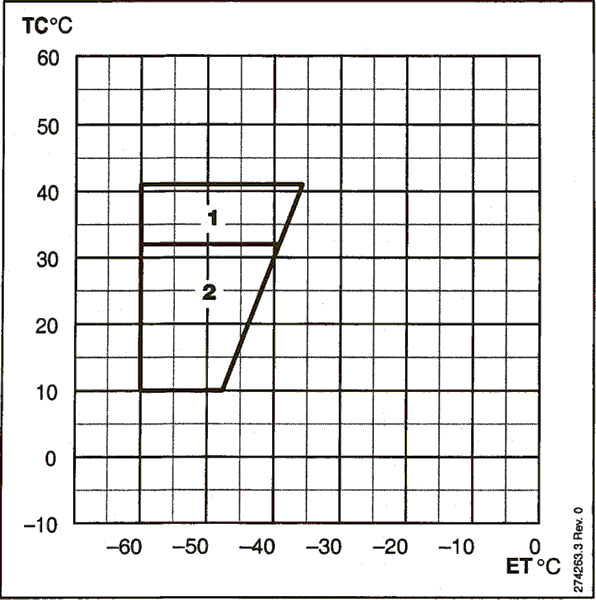

Operating limits two-stage compressors TCMO, TSMC100S-L
| Type | Area | rpm max |
rpm min |
Oil-cooling required * |
Note |
| ТСМ028 | 1 | 1800 | 900 | * | |
| 2 | 1800 | ||||
| TSMC100S | 1 | 1200 | 700 | * | ** |
| 2 | 1500 | ||||
| TSMC100L | 1 | 1000 | 700 | * | ** |
| 2 | 1200 |
*Oil cooling: Not required.
Top- and side covers: Only air-cooled
**Part-load operation: By-pass equipment required to maintain i termediate temperature at minimum load.
