R22

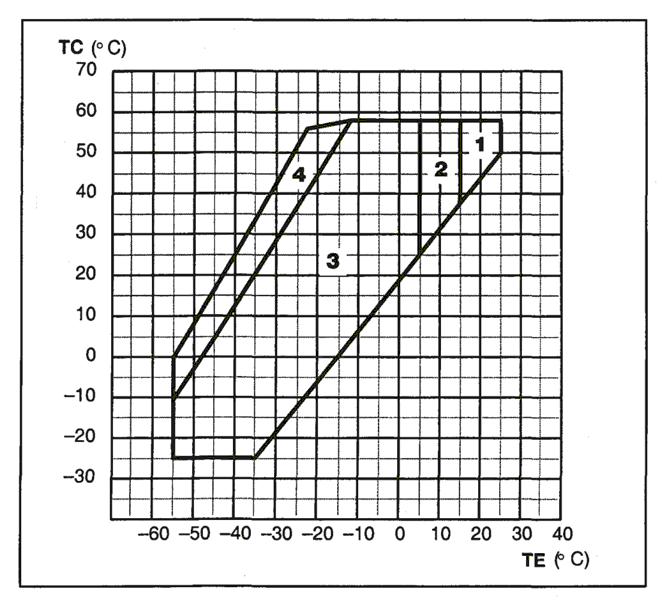

Operating limits single stage compressors TCMO, TSMC100S-L, TSMC 180
| Type | Area | оrpm max |
rpm min |
Oil-cooling required* |
Note |
| ТСМО | 1-2 | 1500 | 900 | no | |
| 3-4 | 1800 | ||||
| TSMC 100S | 1 | 1000 | 700 | yes | ** |
| 2-3 | 1200 | ||||
| 4 | 1500 | ||||
| TSMC 100L | 1 | Not applicable | |||
| 2 | 1000 | 700 | yes | ** | |
| 3-4 | 1200 | ||||
| TSMC 180 | 1-2 | Not applicable | |||
| 3-4 | 750 | 450 | yes | ** | |
Top covers: Air-cooled design only.
* When oil cooling is required there is a free choice between A and B - However, for SMC 180 only A may be selected.
А: Water-cooled side covers
B: Built-in refrigerant-cooled oil cooler with thermostatic expansion valve.
Part-load operation:
** Depending on the operating conditions and the presure on the compressor a bypass system may be required.

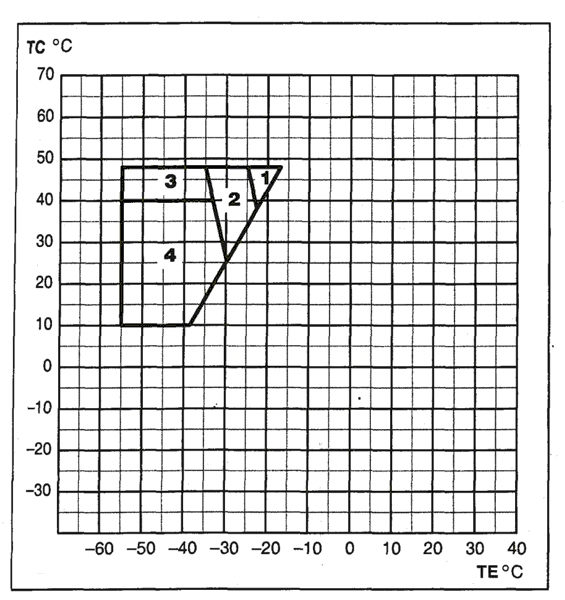

Operating limits two-stage compressors CMO, SMC100S-L, SMC180
| Type | Area | rpm max |
rpm min |
Oil-cooling required* |
Note |
| СМО | 1 | 1500 | 900 | no | |
| 2 | 1500 | no | |||
| 3 | 1800 | At less than 50% capacity | |||
| 4 | 1800 | yes | |||
| SMC 100S | 1 | 1000 | 700 | no | |
| 2 | 1200 | no | |||
| 3 | 1500 | At less than 50% capacity | |||
| 4 | 1200 | yes | |||
| SMC 100L | 1 | Not applicable | |||
| 2 | 1000 | 700 | no | ||
| 3 | 1200 | At less than 50% capacity | |||
| 4 | 1000 | yes | |||
| SMC 180 | 1-2 | Not applicable | |||
| 3 | 750 | 450 | At less than 50% capacity | ||
| 4 | yes | ||||
Top covers:
* When oil cooling is required there is a free choice between A and B - However, for SMC 180 only A may be selected.
А: Water-cooled side covers
B: Built-in refrigerant-cooled oil cooler with thermostatic expansion valve.
